The On-Board Diagnostics II (OBD2) system is a critical component in modern vehicles, providing real-time data and diagnostics. Understanding how to read OBD2 live data is essential for vehicle owners and technicians alike, offering insights into the health and performance of a vehicle. This article dives deep into the world of OBD2, guiding you through the nuances of accessing and interpreting this vital information.
Table of Contents
Understanding OBD2: A Brief History
Before OBD2, there was OBD1, a rudimentary system focusing on basic diagnostics. The evolution to OBD2 marked a significant leap, introducing standardized error codes and real-time data monitoring. This transformation, largely driven by environmental and regulatory factors, has made vehicle diagnostics more accessible and comprehensive.

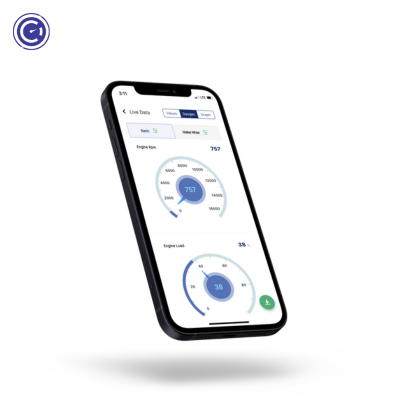

The Basics of OBD2 Live Data
OBD2 live data is a real-time snapshot of what’s happening in the vehicle’s engine and various subsystems. It provides actual values and status information from the engine control unit (ECU) and other systems, allowing you to monitor vehicle performance in real-time.
Common Parameters in OBD2 Live Data:
- Engine RPM: The revolutions per minute of the engine.
- Vehicle Speed: The speed at which the vehicle is traveling.
- Throttle Position: The position of the throttle valve, indicates how much air is entering the engine.
- Fuel System Status: Information about the operational status of the fuel system.
- Short and Long-Term Fuel Trim: Data that shows whether the fuel mixture is rich (too much fuel) or lean (too little fuel) over short and long durations.
- Oxygen Sensor Data: Readings from the O2 sensors, are critical for ensuring optimal combustion and low emissions.
- Coolant Temperature: The temperature of the engine coolant, which can indicate the engine’s operating temperature.
- Intake Air Temperature: The temperature of the air entering the intake manifold.
- Manifold Absolute Pressure (MAP): The pressure inside the intake manifold, is related to engine load.
Benefits of OBD2 Live Data:
- Real-Time Monitoring: Provides instant feedback on how changes or repairs affect the vehicle’s performance.
- Preventative Maintenance: Helps in identifying issues before they become serious problems.
- Performance Optimization: Enthusiasts and professionals can use data to optimize vehicle performance and fuel efficiency.
- Emissions Testing: Live data can be used to ensure that the vehicle is operating within the required emissions standards.
Accessing OBD2 Live Data:
OBD2 live data can be accessed using various tools:
- Handheld Scanners: Portable devices that plug into the OBD2 port and display live data.
- Smartphone Apps with OBD2 Adapters: Wireless adapters that connect the vehicle’s OBD2 port to a smartphone app, offering a user-friendly interface to view and analyze live data.
- Professional Diagnostic Tools: More advanced tools used by professional mechanics that provide detailed live data and diagnostic capabilities.
Understanding and analyzing OBD2 live data requires some knowledge of vehicle systems and how they interact. However, even for the average vehicle owner, live data can be incredibly valuable for monitoring vehicle health and performance. Whether you’re diagnosing issues, fine-tuning performance, or simply curious about your vehicle’s operation, OBD2 live data is an invaluable resource.
Essential Tools for Reading OBD2 Live Data
To access OBD2 live data, you’ll need an OBD2 scanner or reader like GaragePro.
Setting Up Your OBD2 Reader
Connecting an OBD2 reader is usually straightforward. It involves plugging the device into the OBD2 port, typically located under the dashboard. If you encounter connection issues, ensure the tool is compatible with your vehicle and check for any loose connections.
Navigating the OBD2 Interface
Basic Navigation
- Powering Up: Most OBD2 scanners power up once connected to the OBD2 port.
- Main Menu: Upon startup, you’ll typically see a main menu. Common options include ‘Read Codes’, ‘Erase Codes’, ‘Live Data’, ‘Freeze Frame’, and ‘Vehicle Information’.
- Read Codes: This function allows you to read diagnostic trouble codes (DTCs) stored in the vehicle’s computer. These codes help identify issues within various vehicle systems.
- Erase Codes: After fixing an issue, you can use this function to clear the DTCs from the vehicle’s memory.
- Live Data: This feature displays real-time data from various sensors and systems in the vehicle. It’s useful for advanced diagnostics and monitoring vehicle performance.
- Freeze Frame: This captures the vehicle’s data at the time a fault code is stored. It’s helpful for diagnosing intermittent problems.
Advanced Features
- Graphing and Logging: Some advanced scanners can graph live data over time, which is useful for spotting trends or intermittent issues.
- Additional Tests: Advanced tools may offer options like O2 sensor tests, onboard monitoring, and component activation.
- Vehicle-Specific Information: Some scanners can access manufacturer-specific codes and information, providing more detailed diagnostics.
Tips for Navigating the OBD2 Interface
- Familiarize with the Scanner Manual: Different scanners have different interfaces. Reading the manual helps in understanding specific functions.
- Start with Basic Functions: Begin by using basic functions like reading and clearing codes before moving to advanced features.
- Note Down Codes and Data: Before clearing any codes, record them along with any freeze frame data for future reference.
- Safety First: Always ensure the vehicle is in a safe condition to conduct diagnostics, particularly when using live data or conducting tests that require the engine to be running.
- Ongoing Learning: As vehicle technology evolves, so do OBD2 systems. Stay updated with new features and functionalities.
Navigating the OBD2 interface can initially seem daunting, but with practice and exploration, it becomes an invaluable tool in vehicle diagnostics and maintenance. Whether you’re a professional mechanic or a DIY enthusiast, mastering the OBD2 scanner can greatly enhance your understanding and capability in dealing with modern automotive technology.
Interpreting Live Data Readouts
Interpreting live data from an OBD2 scanner is essential for diagnosing vehicle issues. Here’s a concise guide on understanding these readouts:
Key Live Data Parameters
- Engine RPM: High or low RPMs can indicate engine problems.
- Vehicle Speed: Verifies speedometer accuracy and speed sensor functionality.
- Throttle Position: Helps assess air intake and throttle operation.
- Oxygen Sensor Data: Indicates air-fuel ratio efficiency; crucial for identifying fuel system or catalytic converter issues.
- Fuel System Status: Shows the functioning of the fuel system.
- Intake Air and Coolant Temperature: Extreme temperatures can affect engine performance.
- Manifold Absolute Pressure (MAP): Unusual readings can signal vacuum leaks or sensor malfunctions.
Tips for Interpretation
- Compare with Norms: Know standard ranges for specific vehicle models.
- Correlate Data and Symptoms: Match unusual readings with vehicle issues for targeted diagnostics.
- Use Graphical Displays: Graphs can help identify trends and anomalies.
- Monitor Changes in Conditions: Observe how data varies during idle, revving, and driving.
- Cross-Check with DTCs: Use diagnostic trouble codes to complement live data analysis.
Application
- Fuel Efficiency: Check O2 sensors, MAP, and fuel trims.
- Engine Performance: Focus on throttle position, RPM, and MAP.
- Emissions: Pay attention to O2 sensors and catalytic converter data.
Interpreting live data effectively requires understanding vehicle systems and their interactions. This knowledge is key to effective vehicle diagnostics and maintenance.
Common OBD2 Live Data Parameters Explained
Understanding common OBD2 live data parameters is crucial for diagnosing vehicle issues. Here’s an explanation of some key parameters you’ll encounter when using an OBD2 scanner:
1. Engine RPM (Revolutions Per Minute)
- What It Is: Measures the engine speed in rotations per minute.
- Why It Matters: High or low RPMs can indicate engine idling issues, misfires, or the need for tune-ups.
2. Vehicle Speed
- What It Is: Indicates the current speed of the vehicle.
- Why It Matters: Essential for verifying the accuracy of the vehicle’s speedometer and the performance of speed sensors.
3. Throttle Position
- What It Is: Shows the position of the throttle body valve.
- Why It Matters: Helps diagnose issues with air intake, idle speed, and acceleration performance.
4. Oxygen Sensor Data
- What It Is: Measures the amount of oxygen in the exhaust.
- Why It Matters: Vital for checking the engine’s air-fuel mixture, which affects efficiency and emissions.
5. Fuel System Status
- What It Is: Indicates the operational status of the fuel system.
- Why It Matters: Helps in identifying issues with fuel pressure, fuel injectors, or the fuel pump.
6. Intake Air Temperature
- What It Is: Measures the temperature of the air entering the engine.
- Why It Matters: High or low temperatures can affect engine performance and efficiency.
7. Coolant Temperature
- What It Is: Shows the temperature of the engine’s coolant.
- Why It Matters: Critical for monitoring engine overheating and the health of the cooling system.
8. Manifold Absolute Pressure (MAP)
- What It Is: Indicates the air pressure in the intake manifold.
- Why It Matters: Helps assess engine load and the condition of the manifold pressure sensor.
9. Short and Long-Term Fuel Trim
- What It Is: Shows adjustments made to the fuel mixture.
- Why It Matters: Identifies whether the engine is running rich (too much fuel) or lean (not enough fuel).
10. Battery Voltage
- What It Is: Measures the vehicle’s battery voltage.
- Why It Matters: Low voltage readings can indicate battery or charging system issues.
Understanding these parameters allows for a more informed approach to vehicle diagnostics and maintenance, leading to better vehicle performance and longevity.
Advanced Features in OBD2 Live Data Reading
Advanced features in OBD2 live data reading go beyond basic diagnostic codes, offering deeper insights into a vehicle’s performance and health. These features enable more precise diagnostics and can significantly aid in troubleshooting complex issues. Here’s an overview of some advanced features in OBD2 live data reading:
1. Real-Time Graphing
- Description: Displays live data in a graph format over time.
- Utility: Helps in identifying trends or intermittent problems that might not be apparent in static data.
2. Mode 6 Testing
- Description: Provides advanced diagnostic data beyond standard trouble codes, often used by manufacturers for non-continuous monitoring systems.
- Utility: Helps identify issues before they trigger a check engine light, useful for preemptive maintenance and detailed component testing.
3. Fuel System Monitoring
- Description: Offers detailed data on fuel system status, including fuel pressure and injector performance.
- Utility: Critical for diagnosing fuel delivery issues and optimizing fuel efficiency.
4. Advanced Emission Readings
- Description: Provides in-depth data on emission-related systems, like the catalytic converter and EGR system.
- Utility: Vital for ensuring the vehicle meets emission standards and diagnosing emission-related issues.
5. Boost Pressure (Turbocharged Engines)
- Description: Monitors the boost pressure in vehicles with turbochargers or superchargers.
- Utility: Essential for diagnosing issues in forced induction systems, ensuring optimal performance.
6. Bi-Directional Control
- Description: Allows the scanner to send commands to the vehicle, controlling various systems for testing purposes.
- Utility: Enables active component testing and system checks, like cycling the A/C compressor or testing the fuel pump.
7. Customizable Data Points
- Description: Allows users to select and monitor specific data points relevant to the diagnostic task.
- Utility: Provides targeted diagnostics, focusing on areas of interest or concern.
8. Transmission Data
- Description: Offers insight into the performance and health of the vehicle’s transmission system.
- Utility: Critical for diagnosing transmission issues and ensuring smooth operation.
9. ABS and Airbag System Diagnostics
- Description: Reads data from ABS and airbag systems.
- Utility: Essential for diagnosing safety-critical systems and resolving related warning lights.
10. PID (Parameter ID) Data
- Description: Access to a wide range of PID data that offers specific information about engine and vehicle performance.
- Utility: Useful for in-depth analysis of engine operation and finding issues that standard codes may not reveal.
Leveraging these advanced features requires a more sophisticated OBD2 scanner and a deeper understanding of vehicle systems. They are particularly valuable for professional mechanics and serious automotive enthusiasts who need detailed information for comprehensive diagnostics and performance optimization.
Troubleshooting Tips for OBD2 Live Data Issues
Troubleshooting OBD2 live data issues can be streamlined with the following tips:
- Check Connections: Ensure the OBD2 scanner is properly connected to the port.
- Verify Vehicle Compatibility: Confirm if your vehicle supports the specific OBD2 data parameters.
- Test Scanner Functionality: Use the scanner on another vehicle to rule out device issues.
- Battery Check: A low vehicle battery can affect data transmission; ensure it’s charged.
- ECU Communication: Inspect for any ECU communication barriers like blown fuses or wiring issues.
- Sensor Inspection: Check for faulty sensors if data appears inaccurate.
- Software Updates: Update your scanner’s software and vehicle’s firmware for optimal performance.
- Data Interpretation: Understand normal data ranges for accurate interpretation.
- Filter Data: Focus on relevant data parameters specific to your vehicle’s issue.
- Seek Professional Help: If the issue is complex, consult a professional mechanic.
Accurate troubleshooting involves understanding your vehicle’s systems and how they correspond with OBD2 data.
The Role of OBD2 Live Data in Preventive Maintenance
OBD2 live data plays a pivotal role in preventive maintenance of vehicles by offering real-time insights into various systems. Here’s a brief overview:
- Early Problem Detection: Identifies subtle changes in vehicle performance, allowing for early intervention before issues escalate.
- Optimizing Performance: Monitors fuel efficiency and engine health, aiding in maintaining optimal vehicle operation.
- Reducing Repair Costs: Early detection of potential problems helps avoid major, costly repairs and allows for a more customized maintenance schedule.
- Enhancing Safety: Ensures critical systems like brakes and stability control are functioning properly, contributing to overall vehicle safety.
- Emission Control: Helps in keeping the vehicle environmentally friendly by monitoring emission-related data.
- Simplifying Diagnostics: Facilitates quick troubleshooting, reducing the time and effort in diagnosing issues.
- Long-Term Vehicle Health: Regular monitoring via OBD2 contributes to the longevity and reliability of the vehicle.
In summary, OBD2 live data is an invaluable tool in preventive vehicle maintenance, enhancing vehicle performance, safety, and longevity while minimizing repair costs.
Enhancing Vehicle Performance with OBD2 Live Data
OBD2 live data is instrumental in enhancing vehicle performance by providing detailed insights into various vehicle systems. Here’s a concise overview:
- Optimize Fuel Efficiency: Analyze fuel trims and air-fuel ratios to improve combustion and fuel economy.
- Improve Engine Response: Use throttle position and RPM data for fine-tuning engine responsiveness.
- Monitor Engine Health: Keep tabs on coolant temperature and oil pressure to prevent overheating and wear.
- Rectify Performance Issues: Identify and address problems early using diagnostic codes and emissions data.
- Custom Tuning: Tailor engine settings like timing and fuel delivery for enhanced performance.
- Enhance Transmission Efficiency: Optimize gear ratios and shift times for smoother operation and better acceleration.
- Control Emissions: Adjust engine parameters to lower harmful emissions.
- Predictive Maintenance: Use performance data to foresee and prevent potential issues.
In summary, leveraging OBD2 live data allows for targeted adjustments to improve efficiency, responsiveness, and overall vehicle health, ensuring peak performance.
Conclusion
Understanding how to read OBD2 live data is a valuable skill for any vehicle owner or technician. It not only aids in timely diagnostics but also helps in maintaining the vehicle’s health and efficiency. By embracing this technology, you can ensure your vehicle remains in peak condition.
